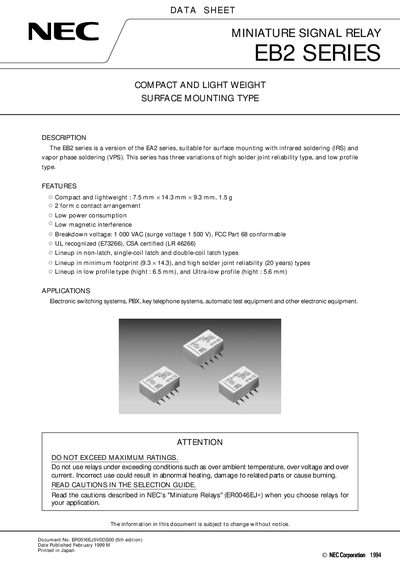

The EB2 series is a version of the EA2 series, suitable for surface mounting with infrared soldering (lRS) and vapor phase soldering (VPS). This series has three variations of high solder joint reliability type, and low profile type.
The EB2 series is a family of miniature signal relays designed for surface‑mount applications using infrared or vapor‑phase soldering. It offers non‑latch, single‑coil latch and double‑coil latch variants with compact dimensions (7.5 mm × 14.3 mm × 9.3 mm) and a weight of about 1.5 g.
The datasheet provides detailed electrical specifications, pin configurations, mechanical drawings, and packaging options (tube and tape). Safety ratings (UL, CSA) and environmental limits (‑40 °C to 85 °C) are also listed, along with guidelines for soldering and application use.
| Breakdown voltage | 1000 VAC (surge 1500 V) |
|---|---|
| Maximum switching power | 30 W (resistive) |
| Contact rating | 7 A |
| Operating temperature range | -40 °C to 85 °C |
| Weight | ≈1.5 g |
The relay can switch up to 220 Vdc and 250 Vac.
