This is a 26cm (10.4 Type) VGA LCD module
The NEC NL6448BC33-50 is a 26 cm (10.4‑inch) TFT color LCD module featuring a Super‑Reflective Natural Light TFT (transflective) panel, edge‑light backlight and replaceable lamps. It is intended for industrial applications such as computers, test equipment, and control systems.

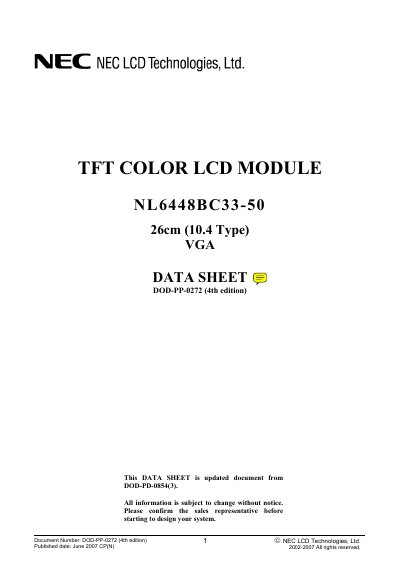

The data sheet provides detailed mechanical, electrical and optical specifications, absolute maximum ratings, and recommended handling precautions for designers integrating the module into their systems.
| Display area | 211.2 mm (H) × 158.4 mm (V) |
|---|---|
| Diagonal size | 26 cm (10.4 inches) |
| Resolution | 640 × 480 pixels |
| Module size (typ.) | 243.0 mm (W) × 185.1 mm (H) × 11.0 mm (D) |
| Weight (typ.) | 560 g |
| Power consumption (typ.) | 6.2 W (inverter not included) |
The module consumes about 6.2 W typical, not including the inverter’s dissipation.
In transmissive mode the contrast ratio is greater than 10 : 1 typical.
