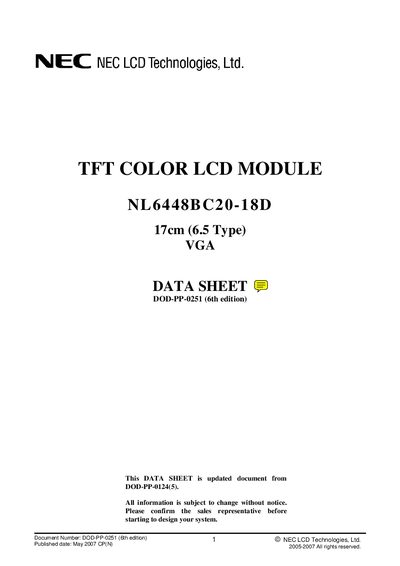

This document is about the details of NEC NL6448BC20-18D 17cm (6.5 Type) VGA liquid crystal display module
The NEC NL6448BC20-18D is a 17 cm (6.5‑inch) TFT color LCD module featuring a 640 × 480 pixel resolution, 262,144 colors, high contrast and wide viewing angles. The datasheet provides detailed mechanical, electrical and environmental specifications, as well as block diagrams and connector information.
Key sections include general specifications, absolute maximum ratings, electrical characteristics, and outline drawings for front and rear views, helping designers integrate the module into industrial equipment and other electronic systems.
| Display area | 132.48 mm (H) × 99.36 mm (V) |
|---|---|
| Diagonal size | 17 cm (6.5 inches) |
| Resolution | 640 × 480 pixels |
| Contrast ratio | 600:1 (typ.) |
| Viewing angle (horizontal) | 80° (typ.) left and right |
| Viewing angle (vertical) | Up 80°, Down 60° (typ.) |
| Backlight lamp type | 2 cold‑cathode fluorescent lamps |
| Weight | 205 g (typ.) |
The display area is 132.48 mm (H) × 99.36 mm (V).
The typical contrast ratio is 600:1.
