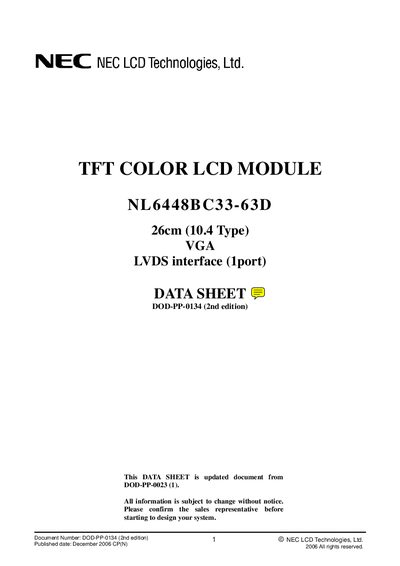

This document is a datasheet about the TFT COLOR LCD MODULE NL6448BC33-63D published by NEC LCD Technologies Ltd. The LCD module is a 26cm (10.4 inch) VGA LVDS interface display with changeable characteristics. Please confirm the information with the sales representative before designing your system.
The NL6448BC33-63D is a 26 cm (10.4‑inch) TFT color LCD module designed for industrial use. It features a high‑luminance a‑Si TFT active‑matrix panel, LVDS (1‑port) interface, selectable 8‑bit or 6‑bit RGB data, and a replaceable edge‑light backlight.
Technical specifications include a 640 × 480 pixel resolution, 600:1 contrast ratio, 25 ms response time, and typical power consumption of 6.2 W (excluding inverter). The module measures 243 mm × 185 mm × 10.5 mm and weighs about 475 g.
| Display area | 211.2 mm × 158.4 mm |
|---|---|
| Diagonal size | 26 cm (10.4 inches) |
| Drive system | a‑Si TFT active matrix |
| Colors (8‑bit input) | 16,777,216 |
| Colors (6‑bit input) | 262,144 |
| Resolution | 640 × 480 pixels |
| Pixel arrangement | RGB vertical stripe |
| Dot pitch | 0.11 mm × 0.33 mm |
| Module size | 243.0 mm × 185.1 mm × 10.5 mm (typ.) |
| Weight | 475 g (typ.) |
| Contrast ratio | 600:1 (typ.) |
| Viewing angle (horizontal) | 80° left / 80° right (typ.) |
| Viewing angle (vertical) | 80° up / 60° down (typ.) |
| Polarizer hardness | 3H (min.) |
| Color gamut | ≈40 % of NTSC |
| Response time | 25 ms (typ.) |
| Interface | LVDS (1‑port) |
| Power supply voltage (VCC) | 3.3 V (typ.) |
| Backlight type | Edge‑light with 2 cold‑cathode fluorescent lamps |
| Typical power consumption | 6.2 W (typ., inverter not included) |
It uses an LVDS interface with a single port.
The module consumes about 6.2 W typical, not counting the inverter.
Horizontal viewing angle is 80° left and right; vertical is 80° up and 60° down (typ.).
The module measures 243 mm × 185 mm × 10.5 mm and weighs about 475 g typical.
