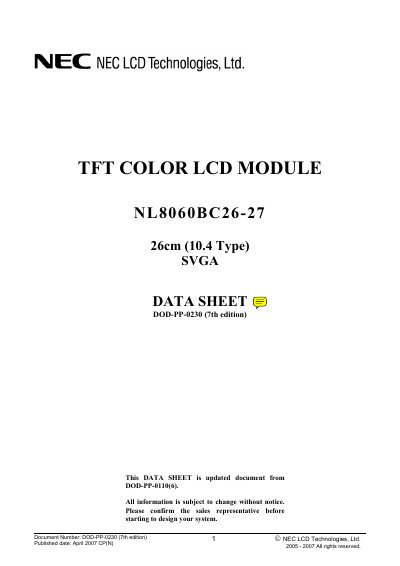

This data sheet introduces the features and characteristics of 26cm (10.4 Type) SVGA TFT COLOR LCD MODULE NL8060BC26-27
The NL8060BC26-27 is a 26 cm (10.4‑inch) TFT color LCD module with an a‑Si active‑matrix panel, driver LSIs, and an edge‑light backlight. It is intended for industrial use and supports 800 × 600 pixel resolution with 262,144 colors.
The datasheet details mechanical dimensions, absolute maximum ratings, electrical characteristics, and recommended power supply conditions, as well as viewing angle, contrast ratio, and backlight specifications for system designers.
| Display area | 211.2 mm × 158.4 mm |
|---|---|
| Diagonal size | 26 cm (10.4 inches) |
| Resolution | 800 × 600 pixels |
| Color depth | 262,144 colors |
| Contrast ratio | 700:1 (typ.) |
| Horizontal viewing angle | 85° (typ.) |
| Backlight type | Edge light, 2 cold cathode fluorescent lamps |
| Module size | 243.0 mm × 185.1 mm × 10.5 mm (typ.) |
| Weight | 475 g (typ.) |
The module has a resolution of 800 × 600 pixels.
It uses an edge‑light backlight with two cold cathode fluorescent lamps.
The typical contrast ratio is 700:1.
