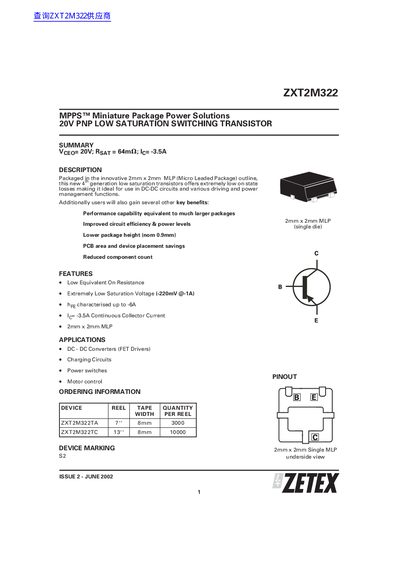

ZXT2M322 is a 20V PNP low saturation switching transistor packaged in a 2mm x 2mm MLP, with extremely low switch losses ideal for use in DC-DC circuits and various driving and power management functions.
The document describes the ZXT2M322 as a miniature power solution packaged in a 2mm x 2mm Micro Leaded Package (MLP). It is designed for use in DC-DC circuits, charging circuits, and power switching applications due to its low on-state losses.
| Collector-Emitter Voltage (Vce) | -20 V |
|---|---|
| Continuous Collector Current (Ic) | -3.5 A |
| Package Type | 2mm x 2mm MLP |
| Operating Temperature Range | -55 to +150 °C |
The device supports a peak pulse current of 6 A.
It can dissipate up to 3 W under those specific mounting conditions.
The absolute maximum collector-emitter voltage limit is -20 V.
