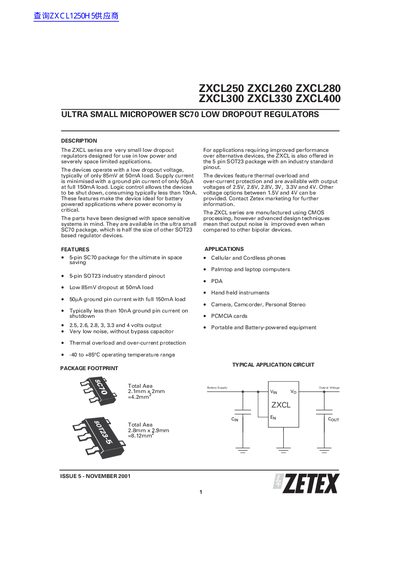

The ZXCL series are very small low dropout regulators designed for use in low power and severely space limited applications. The devices operate with a low dropout voltage, typically of only 85mV at 50mA load. Supply current is minimised with a ground pin current of only 50µA at full 150mA load. Logic control allows the devices to be shut down, consuming typically less than 10nA. These features make the device ideal for battery powered applications where power economy is critical.
The ZXCL series are very small low dropout regulators designed for use in low power and severely space limited applications. The devices operate with a low dropout voltage, typically of only 85mV at 50mA load, and feature a ground pin current of only 50uA at full 150mA load.
These parts are available in the ultra small SC70 package or the industry standard 5-pin SOT23. They offer output voltages of 2.5V, 2.6V, 2.8V, 3V, 3.3V, and 4V, along with features such as thermal overload protection, over-current protection, and logic control for shutdown.
| Package Type | 5-pin SC70 or 5-pin SOT23 |
|---|---|
| Dropout Voltage (Typ) | 85mV at 50mA load |
| Ground Pin Current (Full Load) | 50uA |
| Shutdown Current | < 10nA |
| Operating Temperature Range | -40°C to +85°C |
| Output Voltages | 2.5V, 2.6V, 2.8V, 3V, 3.3V and 4V |
| Thermal Shutdown Temperature | 125°C to 165°C |
The typical dropout voltage is 85mV at a 50mA load.
The devices are available with output voltages of 2.5V, 2.6V, 2.8V, 3V, 3.3V and 4V.
The devices operate within a range of -40°C to +85°C.
