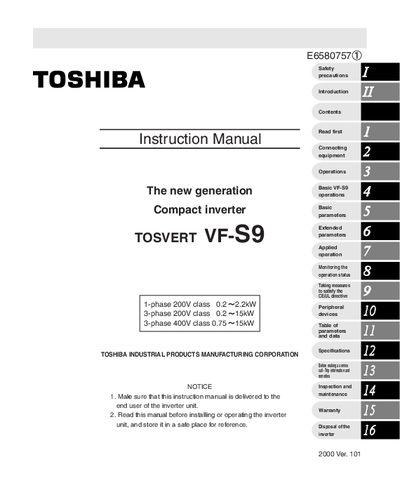

This document introduces the safety precautions, equipment connection, operations, basic parameters, extended parameters, applied operations, monitoring operation status, measures to satisfy CE/UL directives, peripheral devices, parameter and data tables, specifications, inspection and maintenance, warranty, and disposal of the VF-S9 model, a new generation compact inverter by TOSHIBA INDUSTRIAL PRODUCTS MANUFACTURING CORPORATION. This product is suitable for applications of 1-phase 200V class 0.2-2.2kW, 3-phase 200V class 0.2-15kW, and 3-phase 400V class 0.75-15kW.
This manual explains how to safely install, operate, and maintain the Toshiba VF‑S9 industrial inverter. It includes safety precautions, wiring instructions, and disposal guidelines to protect users and equipment.
The document covers installation steps, wiring procedures, basic and extended operation parameters, maintenance checks, warranty terms, and proper disposal methods. It also lists the inverter’s power ratings and optional features.
| Input voltage (1‑phase) | 200 V |
|---|---|
| Power rating (1‑phase) | 0.2–2.2 kW |
| Power rating (3‑phase 200 V) | 0.2–15 kW |
| Power rating (3‑phase 400 V) | 0.75–15 kW |
The inverter must be disposed of by a specialist in industrial waste disposal; improper disposal can cause capacitor explosion or release of noxious gases.
