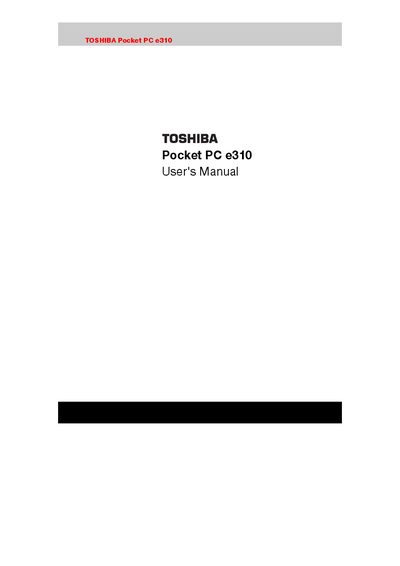

This is a user manual for Toshiba Pocket PC e310, which introduces the features and characteristics of Pocket PC e310, including safety precautions, power interface, battery, headphone interface, speaker, storage card, connection cable, input and output interface, software and maintenance
This manual introduces the Toshiba Pocket PC e310, covering safety precautions, handling instructions, and liability limitations. It explains proper use of the built‑in battery, power adaptor, and accessories, and provides environmental operating limits.
The specifications section lists the device dimensions, weight, operating temperature and humidity ranges, battery type and runtime, processor, memory, display, and available interfaces such as SD card slot, infrared port, and headphone jack.
| External dimensions | 78.75mm(W) x 15.25mm(D) x 124.5mm(H) |
|---|---|
| Weight | 142g (60z) |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 30% to 80% RH |
| Continuous operating time | Approx. 10 hours |
| Memory keeping time | Approx. 72 hours |
| Processor | Strong ARM SA-1110 206 MHz |
| Memory | 32 MB SDRAM |
| Display | Reflection color TFT, 240×320 pixels, up to 64K colors |
| SD card slot | SD memory card or SDI/O card |
| Infrared port | IrDA Ver.1.3 |
| Stereo headphone jack | 23.5 mm stereo mini plug |
| DC‑IN socket | DC‑IN Socket |
| Input power supply | 100‑240 VAC, 50/60 Hz |
| Rated output | DC 5 V, 2 A |
The Pocket PC operates between 0 °C and 40 °C.
The built‑in battery provides approximately 10 hours of continuous operation.
It is powered by a Strong ARM SA‑1110 processor running at 206 MHz.
The unit measures 78.75 mm wide, 15.25 mm deep, and 124.5 mm high.
