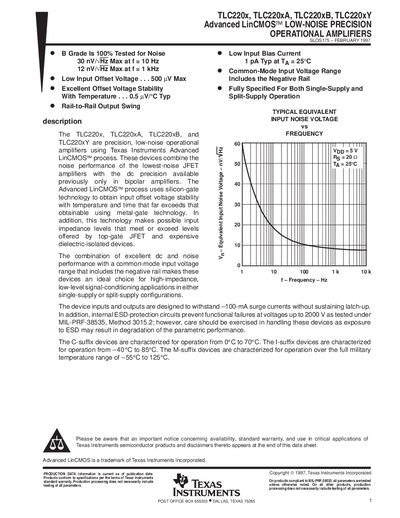

TLC220x, TLC220xA, TLC220xB, TLC220xY are Texas Instruments Advanced LinCMOS process precision, low-noise operational amplifiers. These devices combine the noise performance of the lowest-noise JFET amplifiers with the dc precision available previously only in bipolar amplifiers. The Advanced LinCMOS process uses silicon-gate technology to obtain input offset voltage stability with temperature and time that far exceeds that obtainable using metal-gate technology. In addition, this technology makes possible input impedance levels that meet or exceed levels offered by top-gate JFET and expensive dielectric-isolated devices. The combination of excellent dc and noise performance with a common-mode input voltage range that includes the negative rail makes these devices an ideal choice for high-impedance, low-level signal-conditioning applications in either single-supply or split-supply operation.
The TLC220x, TLC220xA, TLC220xB, and TLC220xY are precision, low‑noise operational amplifiers built with Texas Instruments' Advanced LinCMOS™ process. They combine the low‑noise performance of JFET amplifiers with the DC precision of bipolar devices, offering excellent input offset stability and rail‑to‑rail operation for high‑impedance, low‑level signal‑conditioning applications.
The document lists electrical characteristics such as input noise voltage, offset voltage, supply voltage ranges, output current, and absolute maximum ratings, as well as recommended operating conditions, package options, mechanical dimensions, and an important notice covering warranty and liability. It serves as a reference for designers selecting the appropriate device variant and package.
| Input noise voltage | 30 nV/√Hz at 10 Hz |
|---|---|
| Input bias current | 1 pA typ at 25 °C |
| Supply voltage (Vpp+) | ±5 V (typical) |
| Power rating (D‑8 package, 25 °C) | 725 mW |
The TLC220x devices have an input noise voltage of 30 nV/√Hz at 10 Hz.
The recommended supply voltage (Vpp+) is typically ±5 V, with absolute maximum ratings listed in the datasheet.
