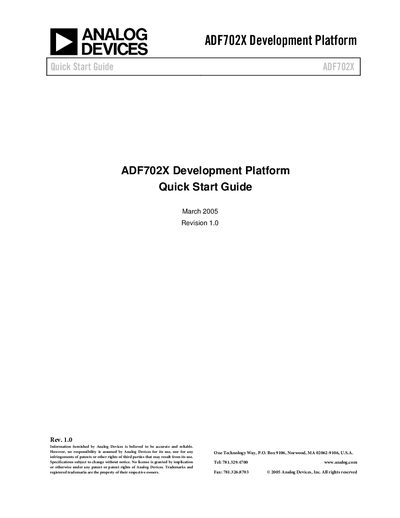

ADF702X Development Platform Quick Start Guide is a quick start guide for Analog Devices' ADF702X Development Platform, which introduces the features, contents, working principles, hardware and software of the ADF702X Development Platform
The ADF702X Development Platform provides hardware and software to demonstrate, evaluate and develop low‑power, low‑data‑rate wireless networks using ADF702X ISM‑band transceivers. It supports ETSI 433/868 MHz and FCC 902‑928 MHz bands and offers a configurable ADismLINK protocol with PHY and MAC layers.
The kit includes a motherboard (EVAL‑ADF70XXMB2), a 3.6 V lithium battery, USB cable, serial cable, and optional RF daughter boards. Two Windows applications – ADF7020Demo and ADF7020Registers – allow configuration of network parameters, register settings, and protocol selection for base units and end points.
| Maximum data rate | 55 kbps |
|---|---|
| Supported frequency bands | 433 MHz, 868 MHz (ETSI) and 902‑928 MHz (FCC) |
| Network topology | Star, 1 Base Unit up to 255 End Points |
| Power mode | Low‑power, duty‑cycled |
| Included battery | 3.6 V Lithium battery |
It provides hardware and software to demonstrate, evaluate and develop a low‑power, low‑data‑rate wireless network using ADF702X ISM‑band transceivers.
Up to 255 end points can be connected to a single base unit.
It supports ETSI 433 MHz and 868 MHz bands and the FCC 902‑928 MHz frequency‑hopping band.
