The AD8138 is a low distortion differential ADC driver with easy-to-use single-ended-to-differential conversion, adjustable output common-mode voltage, externally adjustable gain, low harmonic distortion, and other features. It can be used for ADC drivers, single-ended-to-differential converters, IF and baseband gain blocks, differential buffers, and line drivers.
The AD8138 is a high‑speed differential ADC driver that can convert single‑ended signals to differential outputs or amplify differential signals. It offers adjustable common‑mode voltage, low harmonic distortion and a wide supply range.

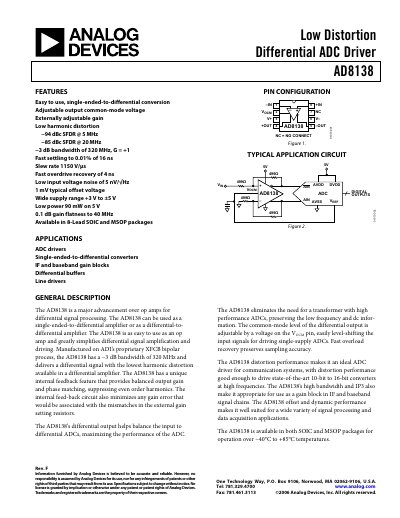

The document includes features, pin configuration, electrical specifications, layout recommendations and example circuits for driving high‑performance ADCs such as the AD9224 and AD9203.
| -3 dB Bandwidth | 320 MHz |
|---|---|
| Supply Voltage Range | +3 V to ±5 V |
| Quiescent Power | 90 mW (5 V supply) |
| Slew Rate | 1150 V/µs |
| Input Voltage Noise | 5 nV/√Hz |
The AD8138 has a -3 dB bandwidth of 320 MHz.
It operates from +3 V up to ±5 V.
The typical slew rate is 1150 V/µs.
The input voltage noise is about 5 nV/√Hz.
