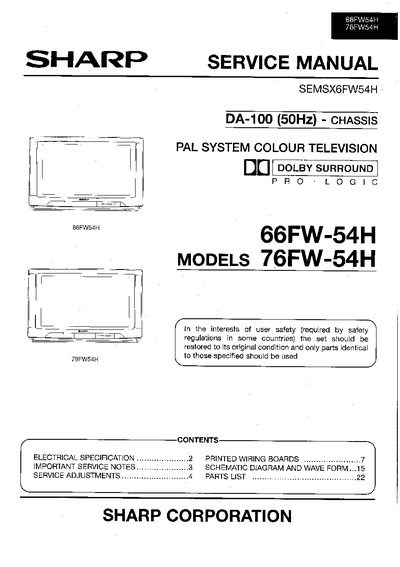

This Sharp service manual provides detailed information for the PAL‑system colour television models 66FW-54H and 76FW-54H. It includes electrical specifications, safety precautions, wiring diagrams, and a complete parts list for qualified service personnel.
The document explains how to perform service adjustments in Service Mode, describes colour and picture‑tube adjustments, and gives step‑by‑step procedures for tasks such as horizontal shift, pin phase, and vertical linearity. Safety warnings emphasize the use of an isolation transformer and proper handling of high‑voltage components.
| Power Input | 220‑240 V AC 50 Hz |
|---|---|
| Normal Operating Power Consumption | 166 W |
| Stand‑by Power Consumption | 0.1 W max |
| Front Left (Internal) Audio Output | 10 W (M.PR.O) |
| Front Right (Internal) Audio Output | 10 W (MPO) |
| Subwoofer Audio Output | 20 W (MPO) |
Press volume‑down and channel‑up buttons together with the main switch turned to ON.
The standby power consumption is 0.1 W maximum.
