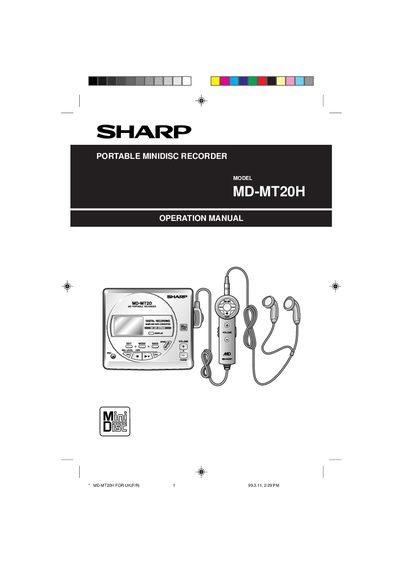

This manual describes how to operate the MD-MT20H
This manual explains how to operate the Sharp MD-MT20H portable MiniDisc recorder. It covers safety precautions, accessories, power options, and step‑by‑step instructions for recording, playback, editing, and troubleshooting.
Key sections include details on the rechargeable Ni‑MH battery, control button functions, connection cables, specifications, and the one‑year guarantee terms. The document also lists the included accessories and provides warnings for safe use of the AC adaptor and battery.
| Dimensions (W x H x D) | 87.9 mm × 29.8 mm × 79.7 mm |
|---|---|
| Weight | 230 g (0.51 lbs) with rechargeable battery |
| Frequency response | 20 Hz – 20 kHz (+3 dB) |
| Sampling frequency | 44.1 kHz (32 kHz and 48 kHz converted to 44.1 kHz) |
| Battery charging time | 4.0 hours |
| Microphone input sensitivity | 0.25 mV (10 kΩ) |
| Earphone output level | 10 mW into 32 Ω |
Charging the battery is complete in about 4.0 hours.
The package includes a remote control unit, earphones, AC adaptor (RADPA8039AWZZ), rechargeable Ni‑MH battery (AD‑T20BT), battery carrying case, analogue cable, optical digital cable, and a carrying bag.
