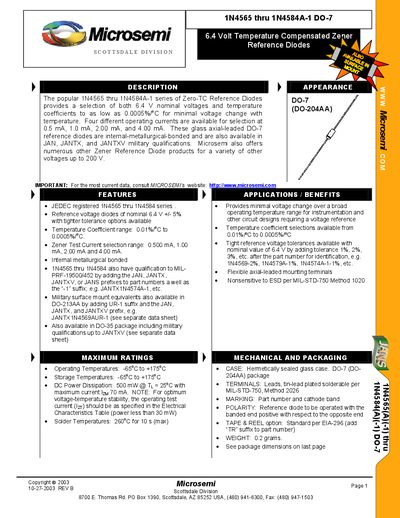

The document describes the features and characteristics of the 6.4 Volt Temperature Compensated Zener Reference Diodes produced by Microsemi Scottsdale Division. These reference diodes provide a selection of 6.4 V nominal voltage and temperature coefficients for minimal voltage change with temperature. Four different operating currents are available for selection. The reference diodes are glass axial-leaded DO-7 packages with internal metallurgical bonding and are also available with JAN, JANTX, and JANTXV military qualifications.
The 1N4565‑1N4584A‑1 series offers 6.4 V nominal Zener reference diodes with temperature‑compensated voltage. Four test‑current options (0.5 mA, 1 mA, 2 mA, 4 mA) and temperature‑coefficient selections from 0.01 %/°C down to 0.0005 %/°C give designers flexibility for precision applications.
These glass‑axial‑lead DO‑7 devices are internally metallurgic‑bonded, hermetically sealed, and available with MIL‑PRF‑19500/452 qualifications (JAN, JANTX, JANTXV). They support a wide operating temperature range (‑65 °C to +175 °C), 500 mW power dissipation at 25 °C, and standard tape‑and‑reel packaging.
| Nominal voltage | 6.4 V |
|---|---|
| Temperature coefficient range | 0.01 %/°C to 0.0005 %/°C |
| Zener test current options | 0.5 mA, 1 mA, 2 mA, 4 mA |
| Operating temperature range | -65 °C to +175 °C |
| DC power dissipation | 500 mW @ 25 °C |
The series is specified with a nominal voltage of 6.4 V.
Four test‑current options are offered: 0.5 mA, 1 mA, 2 mA, and 4 mA.
They operate from –65 °C up to +175 °C.
The diodes can dissipate up to 500 mW at a case temperature of 25 °C.
