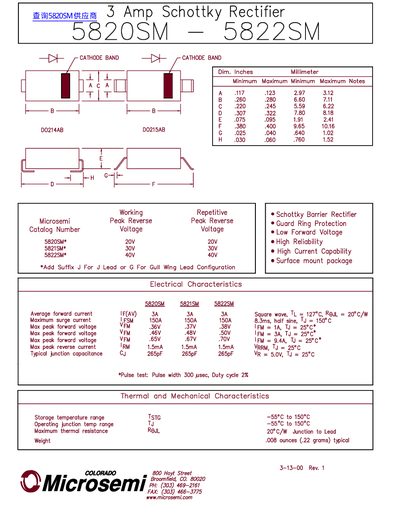

The Microsemi 5820SM series provides 3 A Schottky barrier rectifiers with low forward voltage and high reliability for surface‑mount applications. The devices feature a guard‑ring protection structure and are available in multiple voltage ratings (20 V, 40 V, 65 V).\n\nKey specifications include an average forward current of 3 A, a maximum surge current of 150 A (8.3 ms half‑sine), typical junction capacitance of 265 pF, and a maximum thermal resistance of 20 °C/W. The rectifiers operate over a wide temperature range (‑55 °C to 150 °C) and are supplied in standard SMD packages.
| Average forward current (IF(AV)) | 3 A |
|---|---|
| Maximum surge current (IFSM) | 150 A (8.3 ms half‑sine) |
| Maximum peak forward voltage (VFM) | 0.36 V (5820SM) |
| Maximum peak reverse current (IRM) | 1.5 mA |
| Typical junction capacitance | 265 pF |
| Storage temperature range | ‑55 °C to 150 °C |
| Maximum thermal resistance (RθJC) | 20 °C/W |
| Weight | 0.008 oz (0.22 g) |
The average forward current (IF(AV)) is rated at 3 A.
It can handle a maximum surge current of 150 A for an 8.3 ms half‑sine pulse.
The typical junction capacitance is 265 pF.
