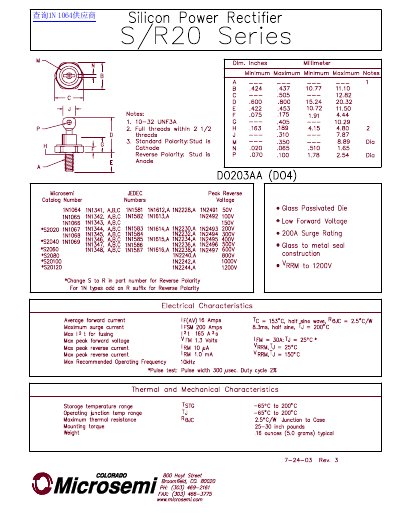

The Microsemi S/R20 series datasheet provides detailed electrical characteristics for the rectifier diodes, including forward current, surge capability, voltage ratings and recommended operating frequency. It also includes typical forward and reverse characteristic curves.
Thermal and mechanical data are listed, such as storage and operating temperature ranges, thermal resistance, mounting torque and physical weight. The document contains dimensional tables and various performance graphs to aid designers in selecting the appropriate part.
| Average forward current (IF(AV)) | 16 A |
|---|---|
| Maximum peak forward voltage (VFM) | 1.3 V |
| Maximum peak reverse current (IRM) | 10 pA |
| Recommended operating frequency | 10 kHz |
| Mounting torque | 25–30 in‑lb |
The average forward current (IF(AV)) is rated at 16 A.
A mounting torque of 25–30 inch‑pounds is recommended.
