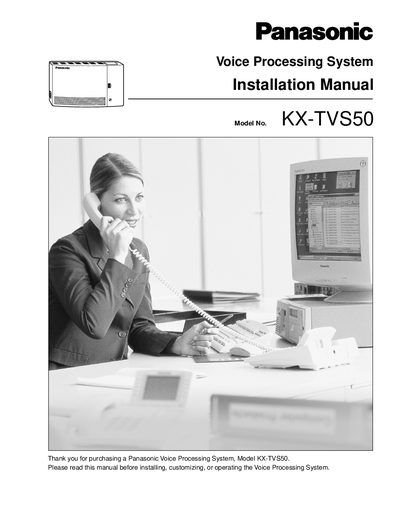

Panasonic KX-TVS50 Voice Processing System Installation Manual, This system can be configured for English, a second language, or a third language
The Panasonic KX‑TVS50 Voice Processing System provides customizable voice prompts and multi‑language support for telephone networks. This manual explains the system’s capabilities, required telephone line interface, and safety considerations.
The guide walks the installer through unpacking, mounting the unit, connecting power and telephone lines, wiring to a PBX, optional memory expansion, RS‑232C terminal setup, and troubleshooting. Safety precautions, such as proper grounding and avoiding extension cords, are highlighted throughout.
| Ringer Equivalence No. | 0.4B |
|---|---|
| Facility Interface Code | 02LS2 |
| Service Order Code | 9.0F |
| Required Network Interface Jack | RJ11C |
The unit requires an RJ11C network interface jack.
Do not connect the unit to an extension cord; use a grounded outlet only.
