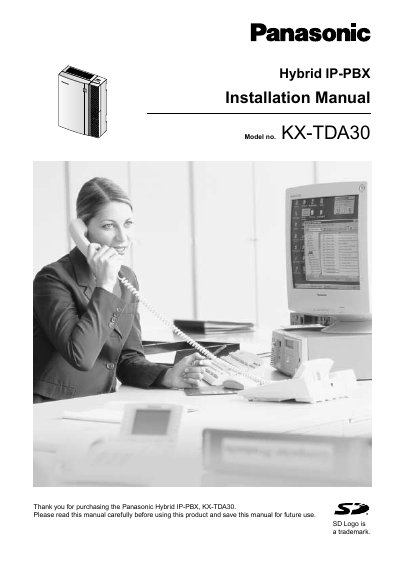

This manual describes the system components and installation instructions of the Panasonic Hybrid IP-PBX KX-TDA30.
This manual provides step‑by‑step instructions for installing the Panasonic KX‑TDA30 Hybrid IP‑PBX. It includes system component tables, safety requirements, wiring diagrams, and procedures for mounting the unit, installing optional service cards, and connecting peripherals.
Additional sections cover system specifications, troubleshooting tips, and guidelines for power supply, environmental conditions, and regulatory compliance, helping installers ensure reliable operation of the PBX system.
| AC Input | 100 V‑240 V, 1.5 A, 50/60 Hz |
|---|---|
| DC Output | 40 V, 1.38 A (55.2 W) |
| Maximum Power Failure Tolerance | 300 ms |
| Memory Backup Duration | 7 years |
| Operating Temperature | 0 °C to 40 °C |
| Humidity Range | 10 % to 90 % (non‑condensing) |
| Ring Frequency | 20 Hz/25 Hz selectable |
The unit requires an AC input of 100 V‑240 V at 1.5 A, 50/60 Hz, and provides a DC output of 40 V at 1.38 A (55.2 W).
The backup memory can retain data for up to 7 years without power.
