The product is a low ESR capacitor Type 101C produced by CDM Cornell Dubilier. Its features are high and low temperature resistance, high ripple current resistance, low ESR and high capacity.
The Type 101C is a low‑ESR, wide‑temperature electrolytic capacitor designed for high‑ripple‑current military and industrial applications. It offers excellent performance down to –55 °C and up to 105 °C, with a low ESR of as little as 2.5 mΩ and ripple‑current capability exceeding 100 A at 55 °C.

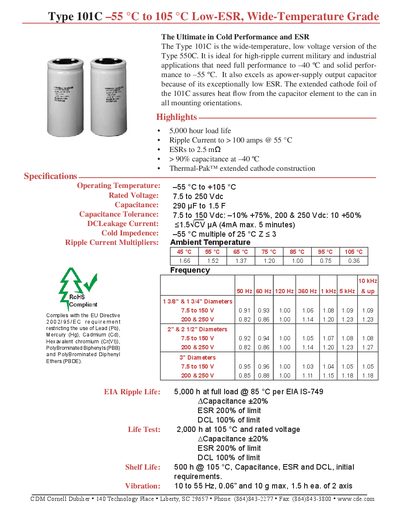

The data sheet provides full electrical ratings, dimensional drawings, part‑numbering conventions, and performance curves for ESR, capacitance, and impedance versus frequency and temperature. It also lists life‑test results, vibration limits, and compliance with RoHS directives.
| Operating Temperature | ‑55 °C to +105 °C |
|---|---|
| Rated Voltage | 7.5 V to 250 Vdc |
| Capacitance Range | 290 µF to 1.5 F |
| Maximum ESR | 2.5 mΩ |
| Ripple Current (55 °C) | > 100 A |
| Load Life (85 °C) | 5,000 h |
It operates from –55 °C up to +105 °C.
The capacitor is rated for 7.5 V to 250 Vdc.
The ESR can be as low as 2.5 mΩ.
It can handle more than 100 A of ripple current at 55 °C.
