ViewSonic VA1948m-LED is a 19-inch LED-backlit monitor with a thin bezel and integrated speakers. It features an eco-friendly mercury-free LED backlight, 1440x900 resolution, 10,000,000:1 MEGA dynamic contrast ratio, DVI and VGA inputs, 5ms response time, VESA® mountable glossy finish design.

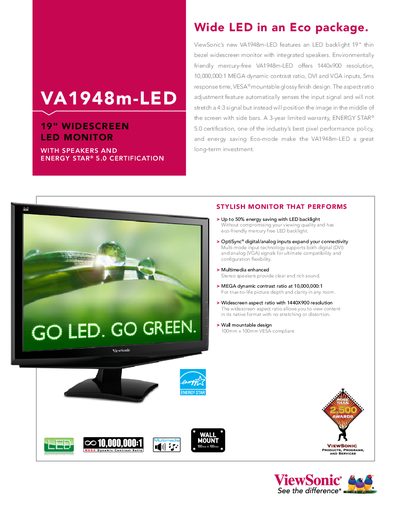

This manual introduces the ViewSonic VA1948m-LED 19" widescreen LED monitor, highlighting its LED backlight, integrated speakers, ENERGY STAR® 5.0 certification, and VESA‑mountable design. It explains the monitor’s auto‑adjust feature that centers 4:3 content without stretching and describes the Eco‑mode for up to 50% energy savings.
The document lists detailed technical specifications such as a 1440×900 resolution, 10,000,000:1 dynamic contrast ratio, VGA and DVI‑D inputs, 18 W typical power consumption, and dimensions with and without the stand. It also covers controls, ergonomics, warranty information, and package contents.
| Display Size | 19" diagonal |
|---|---|
| Resolution | 1440x900 |
| Contrast Ratio (typ) | 1000:1 |
| Dynamic Contrast Ratio | 10,000,000:1 |
| Viewing Angles | 170° horizontal, 160° vertical |
| Response Time | Sms (typ) |
| Brightness | 250 cd/m² (typ) |
| Backlight Life | 30,000 hrs (typ) |
| Inputs | Analog VGA and Digital DVI‑D |
| Power Consumption | 18 W (typ) |
| Power Voltage | AC 100‑240 V, 50/60 Hz |
| Speakers | 2 × 2 W |
| Dimensions (with stand) | 18.0" × 15.0" × 8.7" |
| Weight (with stand) | 7.7 lb (3.2 kg) |
| VESA Mount | 100 mm × 100 mm |
The monitor’s native resolution is 1440 × 900 pixels.
Yes, it is VESA‑compatible with a 100 mm × 100 mm mounting pattern.
Typical power consumption is 18 W.
ViewSonic offers a three‑year limited warranty covering parts, labor, and the backlight.
