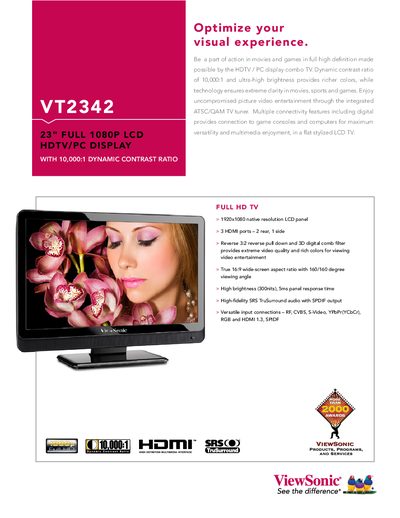

VT2342 is a 23-inch full HD LCD display from ViewSonic, with 1080P resolution, 10000:1 dynamic contrast ratio, 300nits brightness, 5ms response time and SRS TruSurround sound.
The VT2342 is a 23‑inch LCD HDTV/PC display with a native 1920x1080 resolution, 10,000:1 dynamic contrast ratio and 300 cd/m² brightness. It offers three HDMI ports, multiple analog and digital inputs, and built‑in SRS TruSurround audio.
The manual covers setup, control functions, power requirements, dimensions, warranty information and regulatory compliance, helping users install and operate the display safely and efficiently.
| Display Size | 23" diagonal |
|---|---|
| Native Resolution | 1920x1080 |
| Dynamic Contrast Ratio | 10,000:1 |
| Brightness | 300 cd/m² (typ) |
| Response Time | 5 ms |
| Viewing Angles | 170° horizontal, 160° vertical |
| HDMI Ports | 3 (2 rear, 1 side) |
| Audio Output | Speakers 2 × 5 W |
| Power Supply | AC 100‑240 V (universal) |
| Dimensions (with stand) | 22.0" × 16.5" × 7.39" (561 mm × 419 mm × 188 mm) |
| Weight (with stand) | 14.1 lb (6.4 kg) |
The VT2342 has a native resolution of 1920 × 1080 pixels.
The display includes three HDMI ports – two on the rear and one on the side.
It features a 10,000:1 dynamic contrast ratio.
The unit operates on universal AC power ranging from 100 V to 240 V.
