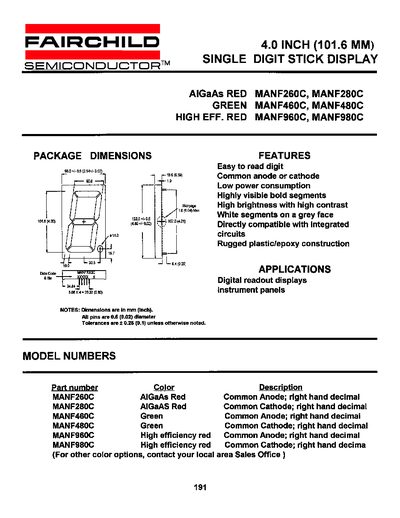

This document is about the use instructions of FAIRCHILD product, the product name is 4.0 INCH (101.6 MM) SINGLE DIGIT STICK DISPLAY
The Fairchild Single Digit Stick Display series offers high‑brightness AlGaAs LEDs in red and green colors, available in common‑anode or common‑cathode configurations. Designed for digital readout displays and instrument panels, the devices feature low power consumption, rugged plastic/epoxy construction, and easy‑to‑read bold segments.
Key electrical characteristics include typical forward voltages of 9.0 V (MANF260C) to 10.5 V (MANF280C), luminous intensities up to 9 000 cd, and peak forward currents of 200 mA (MANF260C) or 90 mA (MANF280C/960C). The datasheet also provides pinout diagrams, absolute maximum ratings, and temperature‑dependent performance graphs.
| Package dimensions | 90.0 mm × 0.5 mm (2.544 in × 0.02 in) |
|---|---|
| Pin diameter | 0.6 mm (0.02 in) |
| Continuous forward current per die | 25 mA (MANF260C), 30 mA (MANF280C/960C) |
| Peak forward current per die | 200 mA (MANF260C), 90 mA (MANF280C/960C) |
| Power dissipation per die | 100 mW (MANF260C), 70 mW (MANF280C/960C) |
| Typical luminous intensity | 9 000 cd (MANF260C), 7 800 cd (MANF280C), 6 300 cd (MANF960C) |
| Typical forward voltage at 20 mA | 9.0 V (MANF260C), 10.5 V (MANF280C), 10.0 V (MANF960C) |
| Peak wavelength | 660 nm (MANF260C), 570 nm (MANF280C), 635 nm (MANF960C) |
| Spectral line half‑width | 20 nm (MANF260C), 30 nm (MANF280C), 45 nm (MANF960C) |
| Reverse breakdown voltage | 10 V (all devices) |
The typical forward voltage for the MANF280C is 10.5 V at 20 mA.
The maximum continuous forward current per die for the MANF260C is 25 mA.
