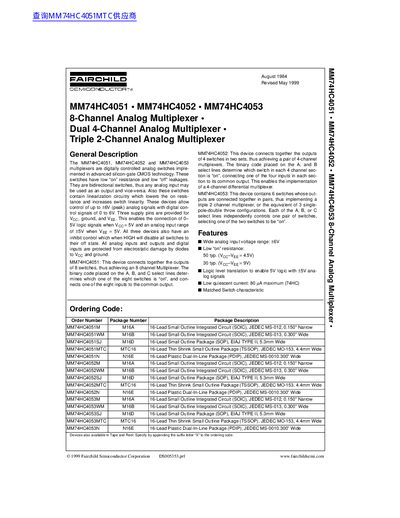

The MM74HC4051, MM74HC4052, and MM74HC4053 multiplexers are digitally controlled analog switches implemented in advanced silicon-gate CMOS technology. These switches have low on resistance and low off leakages. They are bidirectional switches, allowing any analog input to be used as an output and vice versa. These switches also include linearization circuitry, which reduces on resistance and increases switch linearity. These devices can control analog signals up to ±6V (peak) with digital control signals of 0 to 6V. Three supply pins are provided for VCC, ground, and VEE. This enables the connection of 0–5V logic signals when VCC = 5V and an analog input range of ±5V when VEE = 5V. All three devices also have an inhibit control which, when HIGH, will disable all switches to their off state. All analog inputs and outputs and digital inputs are protected from electrostatic damage by diodes to VCC and ground.
The MM74HC4051, MM74HC4052 and MM74HC4053 are digitally controlled analog switches implemented in advanced silicon‑gate CMOS technology. They feature low on‑resistance, low leakage, bidirectional operation and an inhibit control that disables all switches when HIGH. The devices support analog signal ranges up to +6 V peak with digital control levels of 0‑6 V.
The document provides detailed electrical characteristics, absolute maximum ratings, package information, and physical dimensions for the three devices, along with ordering codes for various SOIC, SOP and TSSOP packages. A life‑support policy disclaimer is also included.
| Supply Voltage (Vcc) range | -0.5 V to +7.5 V |
|---|---|
| Supply Voltage (Vee) range | +0.5 V to -7.5 V |
| Typical on‑resistance | 50 Ω at Vcc‑Vee = 4.5 V |
| Low quiescent current | 80 µA maximum (74HC) |
| Maximum output current per pin | +25 mA |
| Operating temperature range | -40 °C to +85 °C |
The devices operate with Vcc from –0.5 V to +7.5 V and Vee from +0.5 V to –7.5 V.
MM74HC4051 provides an 8‑channel multiplexer, MM74HC4052 provides two 4‑channel multiplexers, and MM74HC4053 provides three 2‑channel multiplexers.
Typical on‑resistance is 50 Ω when the supply voltage difference is 4.5 V.
Each pin can source or sink up to +25 mA.
