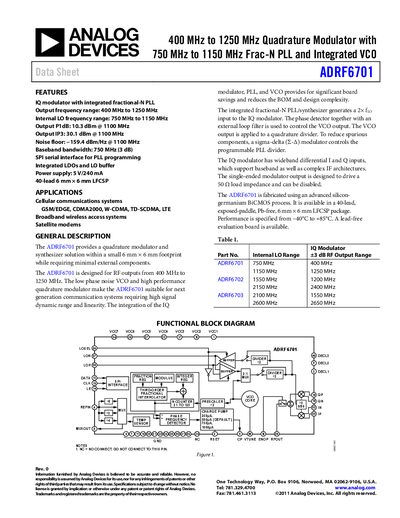

The ADRF6701 is a low-power, high-performance, 400 MHz to 1250 MHz quadrature modulator with an integrated 750 MHz to 1150 MHz frac-N PLL and integrated VCO.
The ADRF6701 is a quadrature IQ modulator that integrates a fractional‑N PLL and VCO, delivering output frequencies from 400 MHz to 1250 MHz. It features SPI programming, integrated LDOs, and a low‑phase‑noise VCO, enabling compact board designs with minimal external components.
Typical applications include cellular communication systems (GSM/EDGE, CDMA2000, W‑CDMA, LTE), broadband wireless access, and satellite modems. The device is supplied in a 40‑lead 6 mm × 6 mm lead‑frame chip‑scale package (LFCSP) and operates from a 5 V supply over a –40 °C to +85 °C temperature range.
| Operating Frequency Range | 400 MHz – 1250 MHz |
|---|---|
| PLL LO Frequency Range | 750 MHz – 1150 MHz |
| Supply Voltage Range | 4.75 V – 5.25 V |
| Supply Current (normal Tx mode) | 240 mA |
| Package | 40‑lead 6 mm × 6 mm LFCSP |
The device can generate RF outputs from 400 MHz up to 1250 MHz.
It operates from a 5 V supply, with an allowed range of 4.75 V to 5.25 V.
The part is offered in a 40‑lead 6 mm × 6 mm lead‑frame chip‑scale package (LFCSP).
Typical supply current is 240 mA when the PLL and IQ modulator are enabled.
