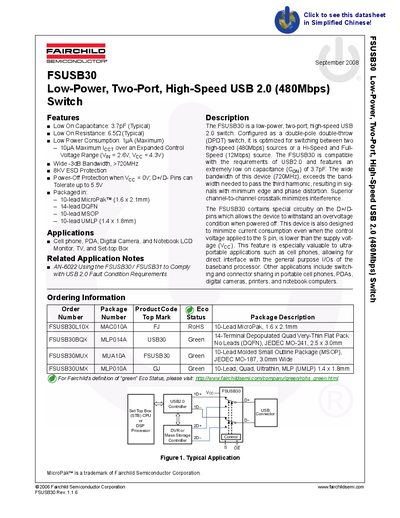

The FSUSB30 is a low-power, two-port, high-speed USB 2.0 (480Mbps) switch. Configured as a double-pole double-throw (DPDT) switch, it is optimized for switching between two high-speed (480Mbps) sources or a Hi-Speed and Full-Speed (12Mbps) source. The FSUSB30 is compatible with the requirements of USB2.0 and features an extremely low on capacitance (CON) of 3.7pF. This device's wide bandwidth (720MHz) exceeds the bandwidth needed to pass the third harmonic, resulting in signals with minimal edge and phase distortion. Superior channel-to-channel crosstalk (CTI) performance makes the FSUSB30 an ideal choice for many USB 2.0 applications.
The FSUSB30 is a low‑power, two‑port, high‑speed USB 2.0 (480 Mbps) switch optimized for portable applications such as cell phones, PDAs, digital cameras and notebook computers. It features a typical on‑capacitance of 3.7 pF, on‑resistance of 6.5 Ω, and a maximum power consumption of 10 µA, while supporting a wide voltage range (2.6 V – 4.3 V) and 8 kV ESD protection.
The device is offered in several compact packages (10‑lead MicroPak, 14‑lead DQFN, 10‑lead MSOP, 10‑lead UMLP) and complies with USB 2.0 fault‑condition requirements. Electrical specifications include a supply voltage range of –0.5 V to +55 V, operating temperature from –40 °C to +85 °C, turn‑on/off times of 30 ns/25 ns, and a bandwidth exceeding 720 MHz.
| On‑Capacitance (typical) | 3.7 pF |
|---|---|
| Operating Voltage Range | 2.6 V – 4.3 V |
| ESD Protection (Human Body Model) | 8 kV |
| Supply Voltage (absolute max) | -0.5 V to +55 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Bandwidth (‑3 dB) | >720 MHz |
The FSUSB30 has a typical on‑capacitance of 3.7 pF.
The device can operate from –0.5 V up to +55 V supply voltage.
It offers 8 kV ESD protection under the human‑body model.
