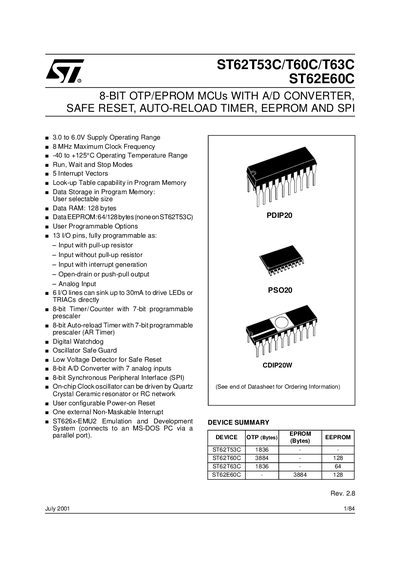

This document describes the features and characteristics of ST62T53C/T60C/T63C ST62E60C series products, including supply operating range, operating temperature range, clock frequency, memory capacity, I/O pin configuration, etc.
The ST62T53C, ST62T60C, ST62T63C and ST62E60C are low‑cost 8‑bit HCMOS microcontrollers from STMicroelectronics. They feature an on‑chip 8‑bit timer, auto‑reload timer, 8‑bit A/D converter with seven inputs, SPI interface, digital watchdog and up to 13 fully programmable I/O pins, making them suitable for automotive, appliance and industrial applications.
The document provides a complete description of the devices, including pin functions, memory organization, on‑chip peripheral options, electrical characteristics, package data and ordering information. It also lists changes from previous revisions and legal notices.
| Supply Voltage Range | 3.0 to 6.0 V |
|---|---|
| Maximum Clock Frequency | 8 MHz |
| Operating Temperature Range | -40 °C to +125 °C |
| Data RAM | 128 bytes |
| Data EEPROM | 64 bytes or 128 bytes (ST62E60C) |
| I/O Pins | 13 fully programmable pins |
| A/D Converter | 8‑bit with 7 analog inputs |
They operate from 3.0 V up to 6.0 V.
The devices provide 13 fully programmable I/O pins.
The maximum clock frequency is 8 MHz.
Yes, the ST62E60C includes 128 bytes of data EEPROM.
