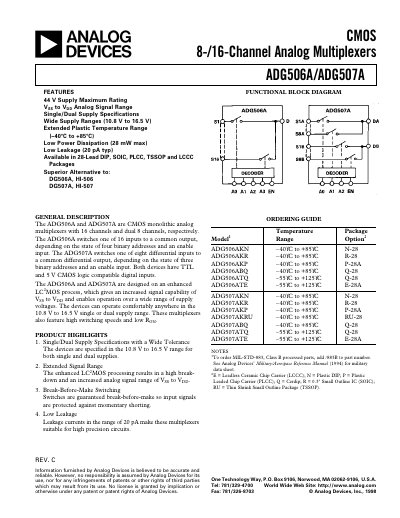

ADG506A/ADG507A are CMOS monolithic analog multiplexers with 16 channels and dual 8 channels, respectively. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic compatible digital inputs. The ADG506A and ADG507A are ideal for use in high-precision analog systems.
The ADG506A and ADG507A are CMOS monolithic analog multiplexers. The ADG506A switches one of 16 inputs to a common output, while the ADG507A switches one of eight differential inputs to a common differential output. Both devices use TTL‑compatible digital inputs and are built on an enhanced LC2MOS process that provides an extended analog signal range from VSS to VDD.
Key features include a dual‑supply voltage range of 10.8 V to 16.5 V, low on‑resistance (typical 280 Ω in dual‑supply mode), ultra‑low leakage (≈20 pA), break‑before‑make switching, and operation over a commercial temperature range of –40 °C to +85 °C. The parts are offered in multiple packages such as 28‑lead DIP, SOIC, PLCC, TSSOP and LCCC.
| Dual‑supply voltage range | +10.8 V to +16.5 V (VDD), –10.8 V to –16.5 V (VSS) |
|---|---|
| Single‑supply voltage range | +10.8 V to +16.5 V (VDD), GND = 0 V (VSS) |
| Operating temperature (commercial) | –40 °C to +85 °C |
| Power dissipation (typical) | 10 mW |
They operate from 10.8 V to 16.5 V for both single‑ and dual‑supply configurations, with VSS ranging from –10.8 V to –16.5 V in dual‑supply mode.
They are rated for –40 °C to +85 °C in commercial (K) versions.
The parts are offered in 28‑lead DIP, SOIC, PLCC, TSSOP and leadless ceramic chip carrier (LCCC) packages.
