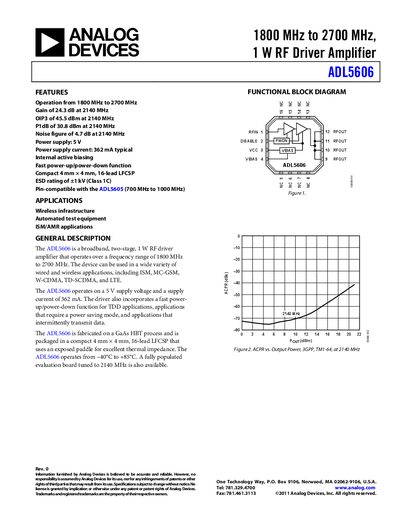

The ADL5606 is a 1W RF driver amplifier that operates from 1800 MHz to 2700 MHz.
The ADL5606 is a two‑stage, 1 W RF driver amplifier designed for wireless infrastructure, automated test equipment, and ISM/AMR applications. It operates on a 5 V supply and includes a fast power‑up/power‑down function for TDD and intermittent‑transmit use.
Key specifications include a frequency range of 1800‑2700 MHz, typical gain of 24.3 dB at 2140 MHz, P1dB of 30.8 dBm, OIP3 of 45.5 dBm, and a noise figure of 4.7 dB. The device is packaged in a compact 4 mm × 4 mm, 16‑lead LFCSP and operates from –40 °C to +85 °C.
| Frequency Range | 1800 – 2700 MHz |
|---|---|
| Gain | 24.3 dB at 2140 MHz |
| Output 1 dB Compression Point (P1dB) | 30.8 dBm at 2140 MHz |
| Output Third‑Order Intercept (OIP3) | 45.5 dBm at 2140 MHz |
| Noise Figure | 4.7 dB at 2140 MHz |
| Supply Voltage | 5 V |
| Supply Current (typical) | 362 mA |
| Package | 4 mm × 4 mm, 16‑lead LFCSP |
| Operating Temperature Range | -40 °C to +85 °C |
| ESD Rating | +1 kV (Class 1C) |
The ADL5606 operates from a 5 V supply.
Typical supply current is 362 mA.
It covers 1800 MHz to 2700 MHz.
