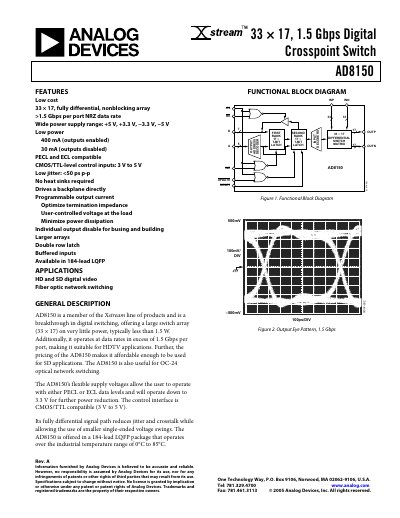

AD8150 is a member of the Xstream line of products and is a breakthrough in digital switching, offering a large-scale, high-performance, low-power, low-cost non-blocking switch array.
The AD8150 digital crosspoint switch provides a 33 × 17 fully differential, non‑blocking array that can handle NRZ data rates greater than 1.5 Gbps per port. It operates from a wide power‑supply range (+5 V, +3.3 V, –3.3 V, –5 V) and offers low power consumption (400 mA enabled, 30 mA disabled). The device includes programmable output current, user‑controlled load voltage, and individual output disable for flexible system design.
The switch is supplied in a 184‑lead low‑profile quad flat package (LQFP) and is rated for an industrial temperature range of 0 °C to 85 °C. Typical applications include HD/SD digital video, fiber‑optic network switching, and OC‑24 optical network switching.
| Maximum data rate per channel (NRZ) | >1.5 Gbps |
|---|---|
| Power‑supply range | +5 V, +3.3 V, –3.3 V, –5 V |
| Quiescent current (all outputs enabled) | 2 mA |
| Output current (typical) | 25 mA |
| Operating temperature range | 0 °C to 85 °C |
| Package | 184‑lead LQFP |
The AD8150 supports NRZ data rates greater than 1.5 Gbps per port.
It can be powered from +5 V, +3.3 V, –3.3 V, or –5 V.
The quiescent current is 2 mA (VDD).
The device is offered in a 184‑lead low‑profile quad flat package (LQFP).
