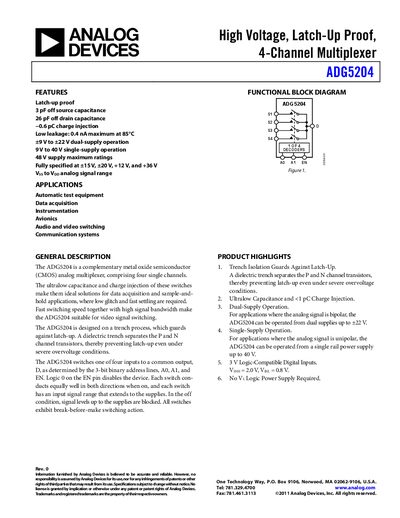

ADG5204 is a high-voltage, latch-up proof, 4-channel multiplexer from Analog Devices. It has a low source-drain capacitance of 3pF, a low output capacitance of 26pF, and a low static charge injection of 0.6pC. It can operate in the single-supply voltage range of -9V to +40V and is suitable for applications such as automatic test equipment, data acquisition, instrumentation, avionics, audio and video switching, and communication systems.
The ADG5204 analog switch provides four single channels with ultralow capacitance, low charge injection, and fast switching speed, making it suitable for data‑acquisition, sample‑and‑hold, and video signal routing. It features trench isolation that prevents latch‑up even under severe over‑voltage conditions and supports both dual‑supply (+9 V to +22 V) and single‑supply (9 V to 40 V) operation.
Typical applications include automatic test equipment, instrumentation, avionics, audio/video switching, and communication systems. The device offers 3‑bit address control, break‑before‑make switching, and a wide analog signal range that extends to the supply rails.
| On‑Resistance (Ron) typical | 160 Ω |
|---|---|
| Source Off Leakage (typical) | 0.01 nA |
| Input High Voltage (VinH) min | 2.0 V |
| Charge Injection (typical) | -0.6 pC |
| Dual‑Supply Voltage Range | +9 V to +22 V |
| Single‑Supply Voltage Range | 9 V to 40 V |
The device can operate from +9 V to +22 V with dual supplies, or from 9 V up to 40 V with a single supply.
The typical on‑resistance is 160 Ω at a supply of +10 V and 1 mA test current.
Yes, trench isolation separates the P and N channel transistors to guard against latch‑up even under severe over‑voltage conditions.
The input high voltage is a minimum of 2.0 V and the input low voltage is a maximum of 0.8 V.
