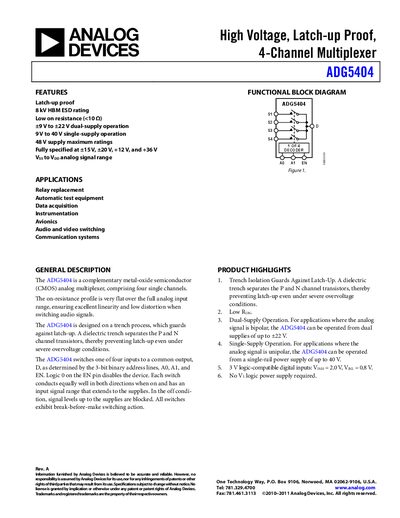

ADG5404 is a high voltage, latch-up proof, 4-channel multiplexer with features such as low on resistance, dual-supply operation, and wide operating range.
The ADG5404 analog multiplexer from Analog Devices provides four single channels with low on‑resistance and excellent linearity. It is built on a trench isolation process that prevents latch‑up even under severe over‑voltage conditions.
The device supports dual‑supply operation up to +22 V and single‑supply operation from 9 V to 40 V, making it suitable for a wide range of instrumentation, industrial, automotive and aerospace applications.
| On‑Resistance (Ron) typical | 9.8 Ω typ |
|---|---|
| ESD rating | 8 kV HBM |
The ADG5404 has an 8 kV human‑body‑model (HBM) ESD rating.
The typical on‑resistance is 9.8 Ω.
