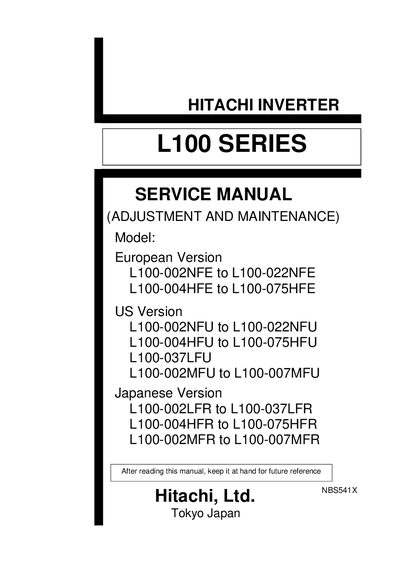

This manual provides maintenance and inspection methods for inverter maintenance personnel
The manual begins with pre‑operation checks, guiding users to verify the inverter model, manufacturing number, and motor specifications before any work. It then details the inverter's basic, monitor, and extended function modes, including parameter settings for frequency, acceleration, braking, and PID control.
Later sections cover measurement methods, insulation and power component tests, maintenance and inspection procedures, and a comprehensive spare‑parts list with compatibility notes. The document also includes error‑message tables, factory‑setting initialization, and ambient‑condition derating guidelines.
| Input voltage class | N: Single/3 phase 200V class |
|---|---|
| Output frequency range | 1‑360 Hz |
| Applicable motor power ratings | 0.2 kW, 0.4 kW, 0.55 kW, 0.75 kW, 1.1 kW, 1.5 kW |
| Version codes | E = European, U = US, R = Japanese |
Look at the specification label attached to the side cover of the unit; it lists the model and MFG No.
The inverter supports the N class, which is a single‑phase or three‑phase 200 V class.
Use the data initialization function (parameter b84) to clear the trip history and restore factory defaults.
The spare parts list is provided in section 10 of the manual.
