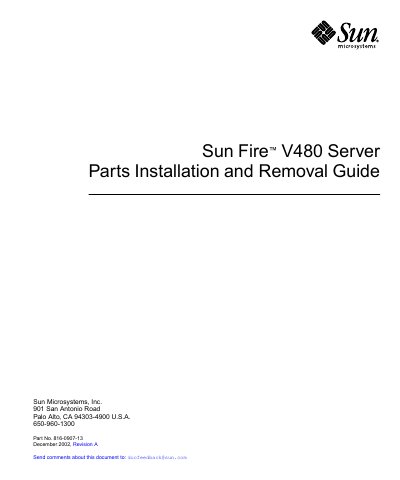

This guide provides detailed information about how to install and remove Sun Fire™ V480 server parts.
This guide provides detailed instructions for installing and removing components of the Sun Fire V480 server. It includes safety precautions, compliance information, and procedures for handling front‑panel, power‑supply, CPU/Memory, PCI riser, and other modules.
The document also lists the physical and electrical specifications of the system, regulatory compliance statements for FCC, CE, and other agencies, and an illustrated parts breakdown to help technicians service the server efficiently.
| Height | 8.75 in (222 mm) |
|---|---|
| Width | 17.5 in (446 mm) |
| Depth | 24 in (610 mm) |
| Weight | 79‑97 lbs (35.83‑44 kg) |
| Power Cord Length | 8.2 ft (2.5 m) |
| Input Nominal Frequencies | 50‑60 Hz |
| Nominal Voltage Range | 100‑240 VAC (auto‑ranging) |
| Maximum Current (AC RMS) | 10 A @ 100‑120 VAC, 5 A @ 200‑240 VAC |
| Maximum AC Power Consumption | 1100 W |
| Maximum Heat Dissipation | 3751 BTU/hr |
The device complies with Part 15 of the FCC Rules as a Class A digital device.
The guide is identified as Part No. 816‑0907‑13.
The server operates on 100‑240 VAC (auto‑ranging) and supports 50‑60 Hz input frequency.
