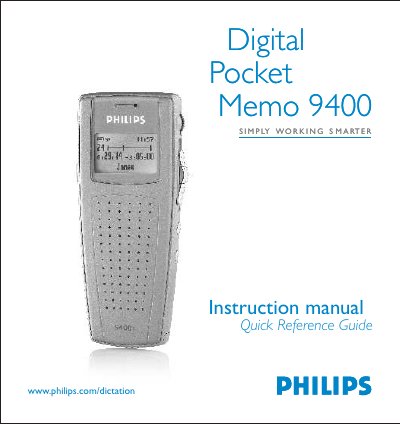

The Digital Pocket Memo 9400 is an intelligent digital pocket recorder with features for efficient recording and operation.
The Digital Pocket Memo 9400 is a portable dictation device with a built‑in microphone, speaker, LCD display, and a 4‑position switch for fast‑forward, playback, stop, and fast‑reverse. It supports MMC or SD memory cards up to 1 GB and can be powered by two Alkaline AAA batteries, optional NiMH rechargeable batteries, or a Philips LFH 9145 power adapter.
The manual details recording procedures, playback controls, file deletion, and menu navigation. It also describes low‑power mode, battery replacement, memory‑card handling, and the functions of LEDs, the jog shuttle, and the EOL/P button for end‑of‑letter and priority marking. This manual is written in Chinese.
| Battery type | Alkaline AAA (2 units) |
|---|---|
| Optional rechargeable battery | NiMH (Philips LFH 9144) |
| Power adapter model | Philips LFH 9145 |
| Memory card type | MMC or SD up to 1 GB |
| LED indicators | Recording LED red; Inserting LED green |
| 4‑position switch functions | Fast‑forward, playback, stop, fast‑reverse |
Unlock the 4‑position switch to the stop position, then press the REC button; the LED blinks red to indicate recording standby.
The device comes with two Alkaline AAA batteries, but you can also use rechargeable NiMH batteries (Philips LFH 9144) or connect a Philips LFH 9145 power adapter.
