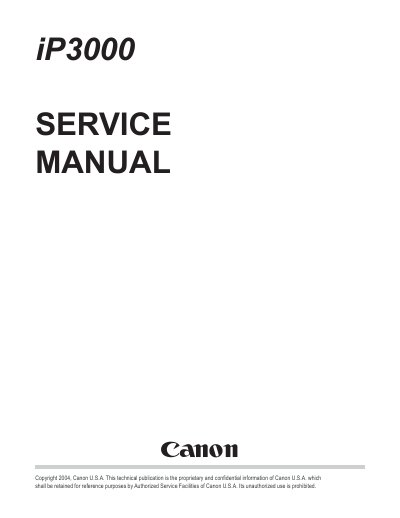

This document is a 2004 Canon U.S.A copyrighted service manual, which provides information on the product list, product specifications, error display, service mode, external view/parts list, troubleshooting flowchart, special notes on servicing in Asia, product technical information, and appendices for the iP3000 printer.
The Canon iP3000 Service Manual provides detailed technical information for authorized service facilities. It includes a product list, full specifications, error display codes, service‑mode functions, an external view with parts list, and a troubleshooting flowchart.
Additional sections cover special service notes for Asia, product technical information, and appendices with service test print and EEPROM data print procedures, enabling technicians to diagnose and repair the printer efficiently. This manual is written in Chinese.
| Printer type | Desktop color bubble jet printer |
|---|---|
| Maximum resolution | 4,800 dpi × 1,200 dpi |
| Interface | USB 2.0 Full Speed |
| Weight | ≈6.5 kg |
| Paper feeding method | Auto sheet feed (ASF, cassette, automatic duplex, CD‑R) |
It means there is no paper in the automatic sheet feeder; load paper and press the Resume/Cancel button.
Enter service mode, select the function that flashes green four times, which resets the waste‑ink counter.
Replace the carriage unit (part number QM2‑1250) and possibly the timing slit strip film and logic board assembly.
In service mode, press the Resume/Cancel button once (orange) to select the service test print function.
