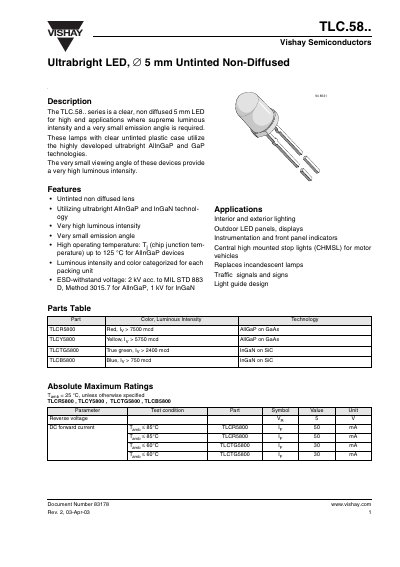

The TLC.58.. series is a clear, non diffused 5 mm LED for high end applications where supreme luminous intensity and a very small emission angle is required.
The TLC.58.. series is a clear, non‑diffused 5 mm LED designed for high‑end applications that require very high luminous intensity and a small emission angle. It uses ultrabright AlInGaP and InGaN technologies and is suitable for interior and exterior lighting, displays, instrument panels, and automotive high‑mounted stop lights (CHMSL).
The document lists detailed optical and electrical specifications, absolute maximum ratings, typical performance curves, and package dimensions. It also includes a policy statement confirming that the devices contain no ozone‑depleting substances.
| Luminous intensity (Red TLCR5800) | > 7500 mcd |
|---|---|
| Dominant wavelength (Red) | 611‑616‑622 nm |
| Forward voltage (Red, 50 mA) | 2.1‑2.7 V |
| Maximum junction temperature (AllGaP) | 125 °C |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Soldering temperature limit | 260 °C |
The forward voltage is between 2.1 V and 2.7 V.
They operate from –40 °C up to +100 °C.
The maximum junction temperature is 125 °C.
