TN2404K/TN2404KL/BS107KL is a high-performance N-channel MOSFET from Vishay Siliconix. It features low on-resistance, low power/voltage drive, low input and output leakage, etc. It is mainly used in high-voltage drivers, telephone mute switches, ringer circuits, power supplies, converters, motor control, etc.

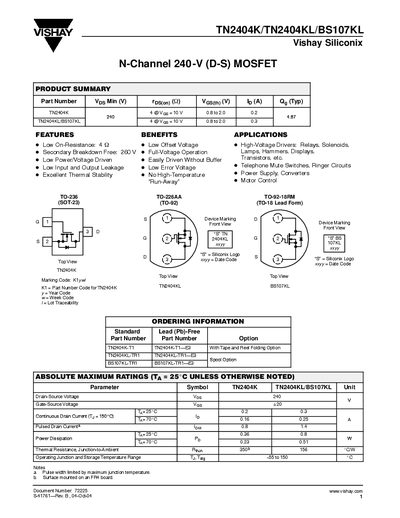

The Vishay Siliconix TN2404K/TN2404KL/BS107KL series are N‑channel MOSFETs rated for 240 V drain‑source voltage. The document provides product summaries, key features, ordering options, absolute maximum ratings, and detailed electrical specifications.
Typical characteristics such as on‑resistance, gate charge, and thermal impedance are presented for various package types (TO‑236, TO‑226AA, TO‑92‑18RM). The sheet also includes legal disclaimer and notes on reliability and usage restrictions.
| Drain‑Source Voltage (VDS) | 240 V |
|---|---|
| Gate‑Source Voltage (VGS) | +20 V |
| Continuous Drain Current (ID) at 25 °C | 0.8 A – 2.0 A (TN2404K) |
| Total Gate Charge (Qg) | 4.87 nC |
The devices are rated for a maximum drain‑source voltage of 240 V.
They are offered in TO‑236, TO‑226AA, and TO‑92‑18RM (SOT‑23) packages.
The gate‑threshold voltage ranges from 0.8 V to 2.0 V.
No, the devices are not designed for medical, life‑saving, or life‑sustaining applications.
