TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100, TLMY1100 are SMD 0603 standard LEDs produced by Vishay Semiconductors. They have extremely small package size and the highest working temperature can reach 100 °C. They can be used in various applications such as backlight keypads, navigation systems, mobile phone displays and industrial control displays.
The TLMB1100, TLMG1100, TLMO1100, TLMP1100, TLMS1100 and TLMY1100 are a family of 0603 surface‑mount LEDs offering six colors and a very wide 160° viewing angle. They are intended for backlight keypads, navigation systems, cellular phone displays, industrial control panels and automotive applications.

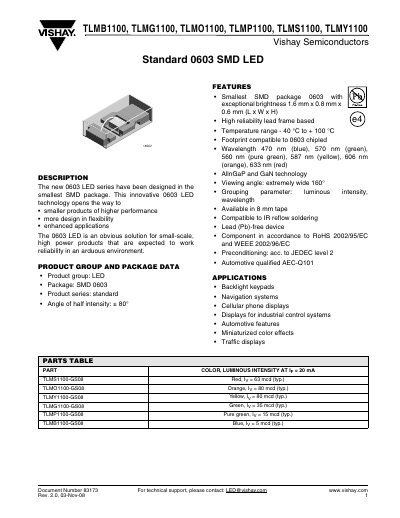

The document lists detailed electrical and optical characteristics, absolute maximum ratings, package dimensions (1.6 mm × 0.8 mm × 0.6 mm), recommended soldering profiles, storage conditions and packaging information. It also includes the ozone‑depleting substances policy and legal disclaimer for the series.
| Package size | 1.6 mm x 0.8 mm x 0.6 mm (L x W x H) |
|---|---|
| Viewing angle | 160° |
| Wavelength range | 470‑633 nm (blue, green, pure green, yellow, orange, red) |
| Forward voltage (typical) | 2.1 V – 3.0 V at 20 mA |
| Power dissipation | 90 mW (typical) |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -40 °C to +100 °C |
The LEDs have an extremely wide viewing angle of 160°.
They operate from –40 °C up to +100 °C ambient temperature.
Six colors are offered: blue, green, pure green, yellow, orange, and red.
Store the devices at 10 °C to 30 °C with humidity ≤ 60 % RH.
