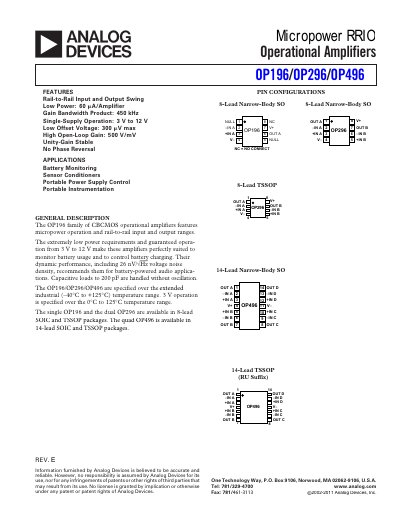

The OP196 family of CBCMOS operational amplifiers offers rail‑to‑rail input and output, low power consumption (as low as 40 µA per amplifier), and operation from 3 V to 12 V. They are suited for battery monitoring, sensor conditioning, and portable power‑supply control, and are specified over an industrial temperature range of –40 °C to +125 °C.
The document provides detailed electrical specifications, absolute maximum ratings, typical performance curves, package dimensions, and an ordering guide for the single‑OP196, dual‑OP296, and quad‑OP496 devices in various SOIC, TSSOP and narrow‑body packages.
| Supply Voltage Range | 3 V to 12 V |
|---|---|
| Gain Bandwidth Product | 350 kHz |
| Output Voltage Swing (Low, I_L=–100 µA) | ≈–70 mV |
| Voltage Noise Density (1 kHz) | 26 nV/√Hz |
They operate from 3 V up to 12 V, covering a wide range for battery‑powered applications.
