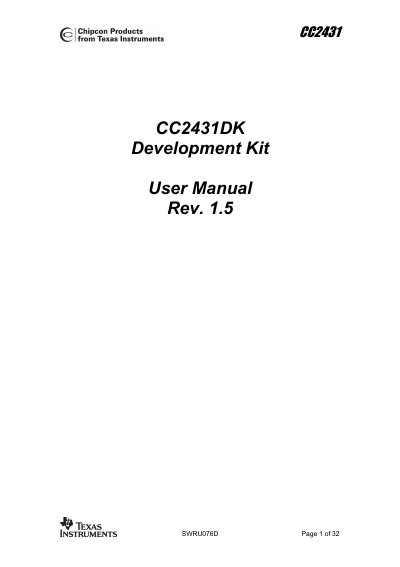

CC2431DK Development Kit User Manual, introduces the hardware and software components of the CC2431DK development kit, usage methods and functions.
The CC2431DK Development Kit User Manual provides detailed instructions for using the hardware and software supplied with the CC2431 Development Kit. It introduces the kit contents, system overview, node types, and the location engine that estimates position using RSSI values.
The guide walks through setting up the IAR Embedded Workbench project, configuring reference and blind nodes, and using the Z‑Location Engine PC application. It also includes schematics, programming flow, communication flow, and a document history with revision information.
| SmartRF04EB modules | 2 units |
|---|---|
| SOC_BB (Battery Board) | 10 units |
| Evaluation Modules CC2430EM | 2 units |
| Evaluation Modules CC2431EM | 10 units |
| 2.4 GHz Antennas | 12 units |
| USB cables | 2 units |
| RS232 Serial cable | 1 unit |
| 10‑wire flat cable | 1 unit |
| RSSI measurement range | -40 dBm to -90 dBm |
| Maximum accuracy (UINT8_1) | 127.5 ± 0.5 meter |
The kit contains 2 SmartRF04EB modules, 10 SOC_BB battery boards, 2 CC2430EM evaluation modules, 10 CC2431EM evaluation modules, 12 2.4 GHz antennas, 2 USB cables, 1 RS232 serial cable, and 1 10‑wire flat cable.
A node can only calculate its position if it is within range of at least three reference nodes.
The location engine uses RSSI values in the range of -40 dBm to -90 dBm.
The Quick Start Guide is included in the kit and can also be downloaded from the CC2431 product website.
