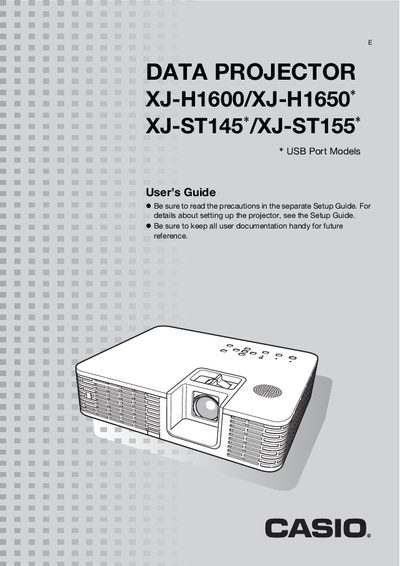

This manual describes how to use the DATA PROJECTOR XJ-H1600/XJ-H1650* XJ-ST145*/XJ-ST155* data projector.
This user guide explains how to set up and operate Casio's XJ series projectors, including the XJ-H1600, XJ-H1650, XJ-ST145, and XJ-ST155. It covers basic functions, remote‑controller usage, input source selection, image adjustments, and advanced settings such as password protection and eco mode.
The manual also details connectivity options (HDMI, LAN, USB, RS‑232C), cleaning procedures, error indicators, and full technical specifications. All instructions assume the remote controller that ships with the projector, but many functions can also be performed directly on the unit.
| Brightness (ANSI Lumens) | XJ-H1600: 3500, XJ-H1650: 2500, XJ-ST145: 3000 |
|---|---|
| Projection System | DLP |
| DLP Chip | 0.7 inch, XGA (1024 x 768) pixels |
| Light Source | Laser and LED hybrid |
| Projection Lens | 1.2× manual optical zoom, manual focus |
| Computer Input Terminals | RGB 15‑pin mini D‑Sub x2 (also component input) |
| HDMI Output | HDMI type A terminal x1 |
| USB Ports | TYPE A x1, TYPE B x1 (XJ-H1650/XJ-ST145/XJ-ST155 only) |
| LAN Interface | RJ‑45 terminal x1 |
| Display Languages | English, French, German, Italian, Spanish, Swedish, Portuguese, Turkish, Russian, Chinese (Simplified), Chinese (Traditional), Korean, Japanese |
The XJ-H1600 provides 3500 ANSI lumens of brightness.
It uses a hybrid laser and LED light source.
Remote control is possible via wired LAN (RJ‑45), wireless LAN, or RS‑232C connection.
Yes, it supports 3D image projection using analog RGB, composite video, or S‑video inputs.
