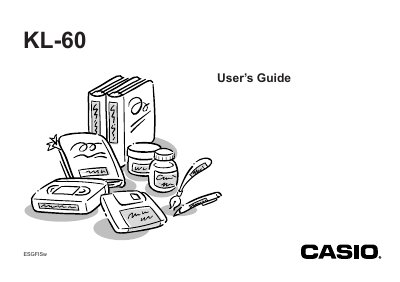

This manual introduces the safety information of the KL-60 ESGFISw printer.
This manual covers important safety precautions, battery handling, and basic setup for the Casio KL-60 label printer. It explains how to install batteries, load tape cartridges, and configure tape width before first use.
The guide then details the operation of the printer, including character input, text effects, printing functions, memory usage, and troubleshooting. A full specification table at the end lists technical data such as display type, printing method, power consumption, and dimensions.
| Keyboard Layout | Typewriter (QWERTY) |
|---|---|
| Alpha Characters | 151 |
| Number Characters | 10 |
| Symbol Characters | 46 |
| Display Type | Liquid crystal display |
| Display Columns | 4 |
| Display Character Matrix | 5x7-dot |
| Printing Type | Thermal transfer |
| Printing Width | 5 mm |
| Character Font | Sans-serif |
| Character Effects | Shade, underline, box |
| Memory Capacity | One block (up to 63 characters) |
| Power Supply | Six AA-size alkaline batteries |
| Battery Life | ≈10 tape cartridges |
| Power Consumption | 9 W |
| Auto Power‑Off | ≈6 minutes of inactivity |
| Dimensions | 49 × 168 × 114 mm |
| Weight | 300 g (excluding batteries) |
| Ambient Temperature Range | 10 °C – 35 °C |
The printer can store and print up to 63 characters per label.
It is powered by six AA‑size alkaline batteries.
Press FUNC and then EFFECT (6 mm) and confirm with SET.
