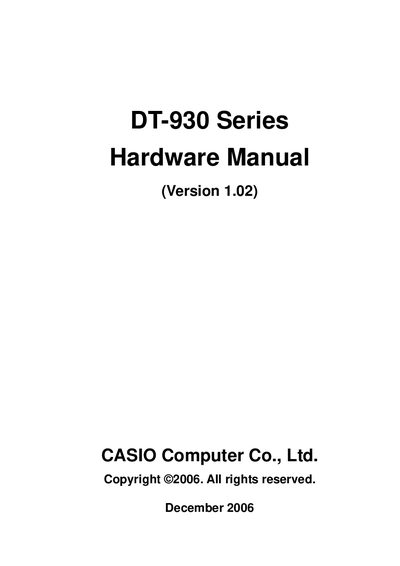

This document is a hardware manual for the DT-930 series. It provides information on the product's external views, system configuration, specifications, cable connections, and features of the basic cradle and satellite cradle.
This manual describes the Casio DT-930 series handheld terminals, including model variants such as DT-930M51E and DT-930M50E. It covers physical dimensions, weight, power options, and key features like high‑resolution display and infrared communication.
The document also lists accessories, consumable items, detailed hardware specifications, reliability figures, and compliance with radio‑interference and safety standards. Reference numbers and bar‑code information for product identification are included.
| Dimensions (DT-930M51E) | 173 mm (D) × 69 mm (W) × 31.6 mm (H) |
|---|---|
| Weight (DT-930M51E) | ≈ 210 g |
| Operating time (AA alkaline batteries) | ≈ 200 hours (2 AA) |
| Operating time (Lithium‑ion battery pack) | ≈ 30 hours |
| CPU | SHI 32‑bit RISC |
| Main RAM | 4 MB |
| Flash ROM | 16 MB |
| MTBF | 70,000 hours |
| Power‑switch life | 3,000 cycles |
| Terminal‑detection switch life | 20,000 cycles |
| DC‑jack connect/disconnect cycles | 500 cycles |
| Battery‑pack removal cycles | 5,000 cycles |
The DT-930M51E measures 173 mm (D) × 69 mm (W) × 31.6 mm (H) and weighs about 210 g.
It can run for approximately 200 hours using two AA‑size alkaline batteries.
The device is powered by a SHI 32‑bit RISC CPU.
The manual lists an MTBF of 70,000 hours for the terminal.
