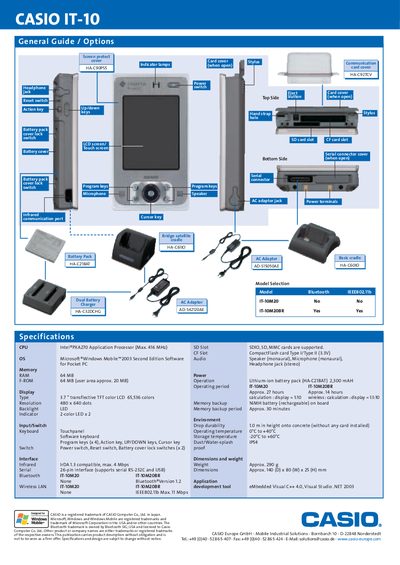

This document provides specifications and options for CASIO IT-10 series products, including model, operating system, memory, display, keyboard, and interfaces.
The Casio IT-10 is a rugged PDA designed for harsh business environments. It features a 3.7‑inch transflective VGA LCD, Intel® PXA270 processor, and optional Bluetooth and Wi‑Fi connectivity, making it suitable for vertical market applications such as sales force automation and facility maintenance.
The device is built to IP54 dust‑ and water‑splash protection, can survive a 1 m drop onto concrete, and includes a removable 2,300 mAh lithium‑ion battery that delivers up to 27 hours of continuous use. Expansion is provided via sealed CompactFlash and SD slots, supporting wireless communication cards and SDIO devices.
| Processor | Intel® PXA270 Application Processor (Max. 416 MHz) |
|---|---|
| User Memory | 64 MB (≈20 MB usable) |
| Battery Life | Up to 27 hours continuous operation |
| Weight | ≈290 g |
| Dimensions | 140 × 80 × 25 mm (D × W × H) |
| Bluetooth | Version 1.2 |
| Wi‑Fi | IEEE802.11b, up to 11 Mbps |
| CompactFlash Slot | Supports up to 1 A current |
| SD Slot | Supports SD, SDIO, MMC cards |
The IT-10 can run up to 27 hours of continuous use on its 2,300 mAh lithium‑ion battery.
The IT-10 supports Bluetooth 1.2 and IEEE802.11b Wi‑Fi up to 11 Mbps.
It includes a CompactFlash slot capable of supplying up to 1 A and an SD slot that supports SD, SDIO, and MMC cards.
