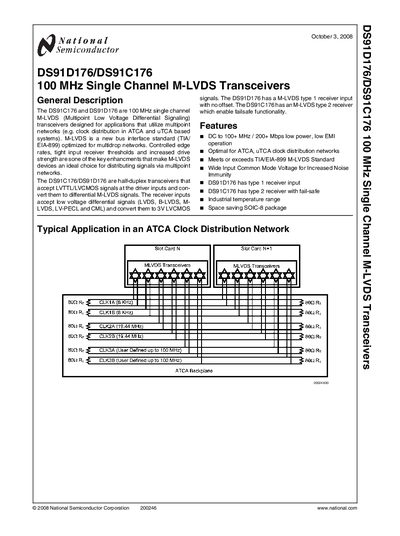

DS91D176/DS91C176 100 MHz Single Channel M-LVDS Transceivers, designed for applications that utilize multipoint networks (e.g. clock distribution in ATCA and uTCA based systems)
The DS91D176 and DS91C176 are 100 MHz single‑channel M‑LVDS transceivers designed for multipoint networks such as ATCA and uTCA clock distribution. They accept LVTTL/LVCMOS inputs and output differential M‑LVDS signals, supporting a range of LVDS‑compatible standards.
The devices are offered in a space‑saving SOIC‑8 package, operate over an industrial temperature range, and provide up to 200 Mbps data rate with low power consumption. Detailed electrical characteristics, switching specifications, and test circuits are included.
| Frequency | 100 MHz |
|---|---|
| Maximum Data Rate | 200 Mbps |
| Package | SOIC‑8 |
| Supply Voltage | -0.3 V to +4 V |
The transceivers support a maximum data rate of 200 Mbps.
Both devices are available in a space‑saving SOIC‑8 package (M08A).
They operate with a supply voltage from –0.3 V to +4 V.
