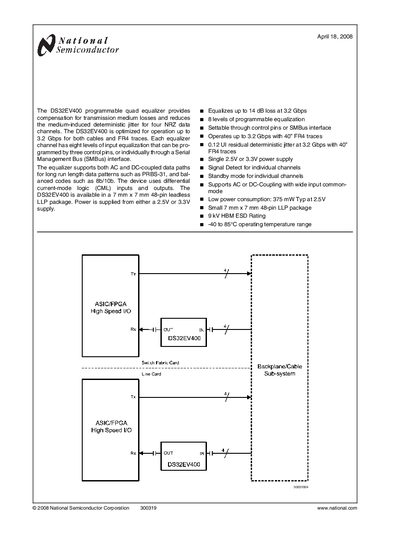

The DS32EV400 programmable quad equalizer provides compensation for transmission medium losses and reduces the medium-induced deterministic jitter for four NRZ data channels.
The DS32EV400 programmable quad equalizer compensates for transmission‑medium losses up to 14 dB and reduces deterministic jitter on four NRZ data channels. It operates up to 3.2 Gbps on both copper cables and FR‑4 traces and offers eight levels of input equalization per channel, selectable via three control pins or an SMBus interface.
The handbook provides detailed pin descriptions, SMBus protocol information, electrical characteristics, absolute maximum ratings, and recommended operating conditions. It also includes package dimensions, power‑supply options, and typical performance figures such as power consumption, ESD rating, and temperature range.
| Input equalization levels | 8 |
|---|---|
| Supply voltage options | 2.5 V or 3.3 V |
| Typical power consumption | 375 mW (typ at 2.5 V) |
| ESD rating | 9 kV HBM |
| Operating temperature range | -40 °C to +85 °C |
| Package | 7 mm × 7 mm 48‑pin leadless LLP |
| Maximum data rate | 3.2 Gbps |
| CML input/output voltage range | -0.5 V to 4.0 V |
Each channel provides eight programmable equalization levels, selectable via control pins or SMBus.
The device can be powered from a single 2.5 V or 3.3 V supply.
The DS32EV400 operates up to 3.2 Gbps on both cables and FR‑4 traces.
