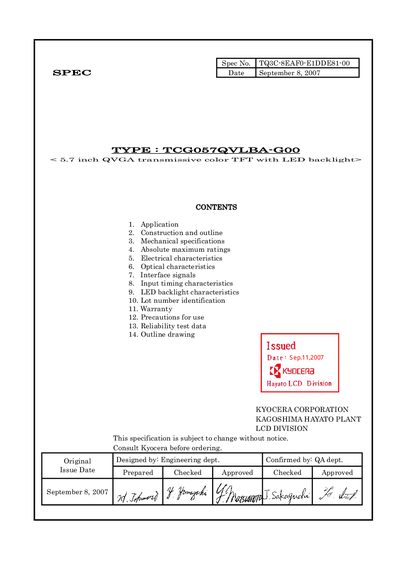

The document is a specification for the TCG057QVLBA-G00 5.7 inch QVGA transmissive color TFT display with LED backlight produced by KYOCERA CORPORATION KAGOSHIMA HAYATO PLANT LCD DIVISION. The document includes the application, construction and outline, mechanical specifications, absolute maximum ratings, electrical characteristics, optical characteristics, interface signals, input timing characteristics, LED backlight characteristics, lot number identification, warranty, precautions for use, reliability test data, and outline drawing of the display.
This document defines the specifications of the Kyocera TCG057QVLBA-G00 LCD module, a 5.7‑inch QVGA transmissive color TFT with LED backlight. It includes application guidance, construction details, mechanical dimensions, absolute maximum ratings, and electrical and optical performance data.
Key sections cover mechanical specifications (outline dimensions, active area, dot format), electrical limits (supply voltage, LED forward current, input voltage), and optical characteristics (contrast ratio, brightness, response time, viewing angles). The spec also lists warranty, precautions, and reliability test data.
| Outline dimensions | 127.2 W × 100.4 H × 5.7 D mm |
|---|---|
| Active area | 115.2 W × 86.4 H mm |
| Dot format | 820 × 240 dots (RGB) |
| Dot pitch | 0.12 W × 0.86 A mm |
| LED forward current | 80 mA |
The module measures 127.2 mm wide, 100.4 mm high, and 5.7 mm deep.
The LED forward current is limited to 80 mA.
