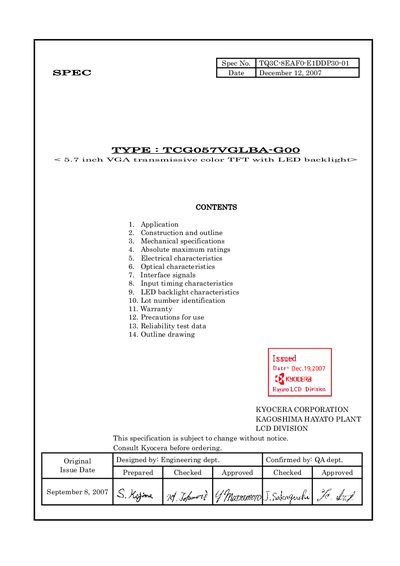

This document describes the application, construction and outline, mechanical specifications, absolute maximum ratings, electrical characteristics, optical characteristics, interface signals, input timing characteristics, LED backlight characteristics, lot number identification, warranty, precautions for use, reliability test data, and outline drawing of the 5.7 inch VGA transmissive color TFT with LED backlight, model TCG057VGLBA-G00.
This document defines the specifications of the Kyocera TCGO57VGLBA-GOO 5.7‑inch VGA transmissive color TFT LCD module with LED backlight. It includes application notes, construction details, mechanical dimensions, absolute maximum ratings, and electrical, optical, and timing characteristics.
The datasheet also contains LED backlight information, warranty terms, usage precautions, reliability test data, and an outline drawing, making it a comprehensive reference for designers and integrators of industrial control, office automation, and home appliance equipment.
| Outline dimensions | 127.2 mm (W) × 100.4 mm (H) × 5.7 mm (D) |
|---|---|
| Active area | 115.2 mm × 86.4 mm |
| Dot format | 640 × 480 |
| Dot pitch | 0.06 mm (W) × 0.18 mm (H) |
| Mass | 110 g |
| Supply voltage for logic (Vop) | 0 V – 4.0 V |
| Input signal voltage (Vin) | 0.8 V – 6.0 V |
| LED forward current (IF) | 30 mA |
| Operating temperature range | -20 °C – 70 °C |
| Brightness | 175 cd/m² – 250 cd/m² (at 15 mA/line) |
| Contrast ratio | 300 – 500 |
The outline dimensions are 127.2 mm wide, 100.4 mm high, and 5.7 mm deep.
The logic supply voltage (Vop) can range from 0 V up to 4.0 V.
The LED forward current is limited to 30 mA.
The module is rated for operation from –20 °C to 70 °C.
