Kyocera LCD module is specifically designed for use only in electronic devices in the areas of audio control, office automation, industrial control, home appliances, etc. The modules should not be used in applications where module failure could result in physical harm or loss of life.
The KCGOS57QVLDG-G77 is a 320 × 240‑dot STN transmissive LCD module with side‑edge LED backlight, intended for audio control, office automation, industrial control, and home appliances. It features a COG type construction, bias voltage circuit, randomizing circuit, DC‑DC converter, and temperature compensation for contrast.

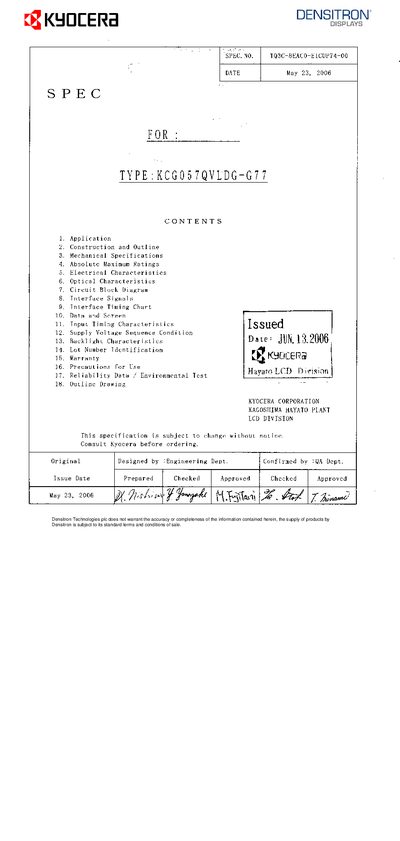

The datasheet provides mechanical dimensions, electrical ratings, optical performance, interface signals, timing charts, and environmental reliability data, along with handling precautions and inspection criteria.
